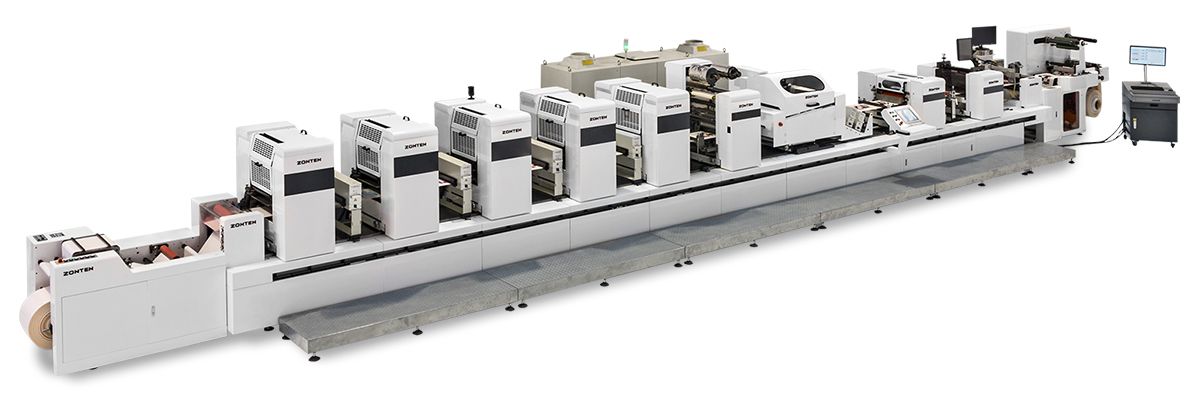

PS Plate Intermittent Offset Label Printing Machine, ZTJ-330
ZTJ-330 intermittent offset press is the most advanced adhesive sticker label printing machine, which is designed based on the classic structure of Heidelberg SM52. The three-point suspension mechanism makes this printing equipment more stable and practical.
The offset printing machine is suitable for the printing of coated paper stickers, aluminum foil paper stickers, thermal paper, as well as PE, PP and PVC stickers. The resolution of this offset printing press is over 200LPI.
Our offset label printing machine is advantageous to short-run printing job because no need to cost on printing cylinder any more. Meanwhile, the ink transfer from offset label printing machine is achieved by 23 pcs inking rollers. The ink quantity can be automatically controlled by the computer. The customer also saves cost from anilox roller if compared with flexo printing machine.
|Max. Width of the Material||330mm|
|Max. Printing Width||320mm|
|Printing Length Range||100-320mm|
|Thickness of the Printed Material||0.1-0.3mm|
|Machine Speed||50-180rpm (50m/min)|
|Max. Diameter of Unwinding||700mm|
|Max. Diameter of Winding||700mm|
|Host Power||30kw/6 colors (Not including the UV system)|
|Power of the UV System||4.8kw|
|Power Supply||Three phase 380V|
|Weight||about 13 ton/6 colors|
1. Machine speed varies with the change of the printing length.
2. The appearance of the machine and the production process are subject to change without notice.
Combining German Heidelberg offset printing technology and our patent technology, the PS Plate Intermittent Offset Label Printing Machine, ZTJ-330 adopts Japanese Panasonic servo motor and is controlled by DOS system and high-performance CPU. The self-developed vacuum reflux uncoiling technology solves the problem of unstable tension of traditional printers when printing and effectively prevents the depletion caused by fiction between printing materials and other components. This equipment is easy to operate. Users can control it through the mobile touch console to make it adjust by itself, like automatic pressure adjustment, ink roller cleaning, etc. Users can also add some devices, such as cold foil stamping system, CCD camera, etc., to make this equipment multifunction. Our product can run 200 revolutions per minute and can print on materials with the width of 330mm and the thickness of 0.1-0.3mm, which has a strong printing capacity.

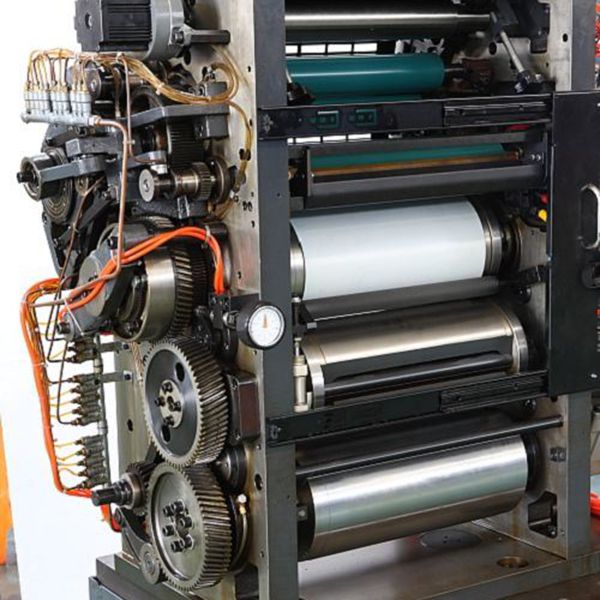

- The ZTJ-330 offset printing machine adopts the most advanced ink system which has 23 ink rollers (including four large-diameter forme rollers) and uses alcohol dampening, ensuring the quality of the printed products.
- Register can be adjusted through the remote control of each printing unit in transverse, longitudinal and skew directions without stopping the equipment. Movement of the printing unit is very flexible, so this saves time and reduces material waste.

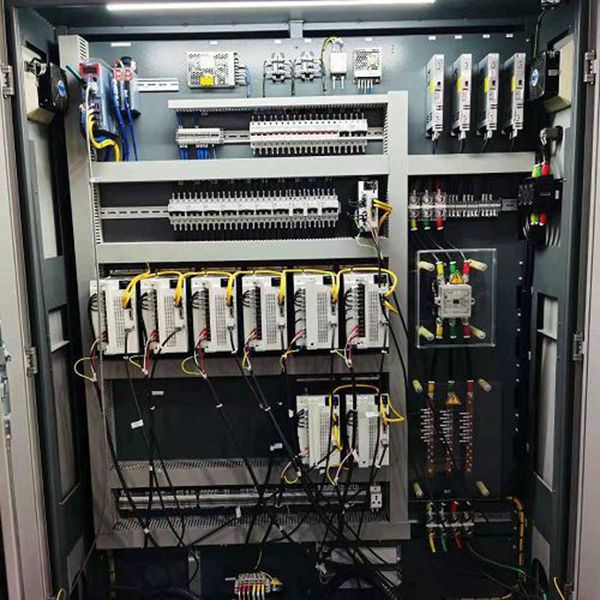

- Control system of the machine adopts imported international brands of electrical components, which guarantees long-term reliable operation.

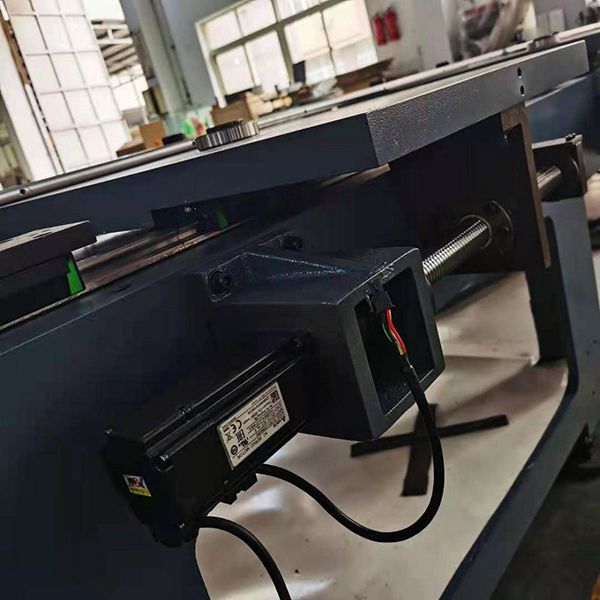

- Each unit is driven by independent servo motor, so each unit works independently of each other. A stable overprint precision can also be provided in high-speed printing.
- For different printing length, it is only needed to input the printing specifications on the mobile console. Then each unit will automatically move to the required place, which is very convenient.
- Adopting patented technology, our product can achieve greater variable-format printing.

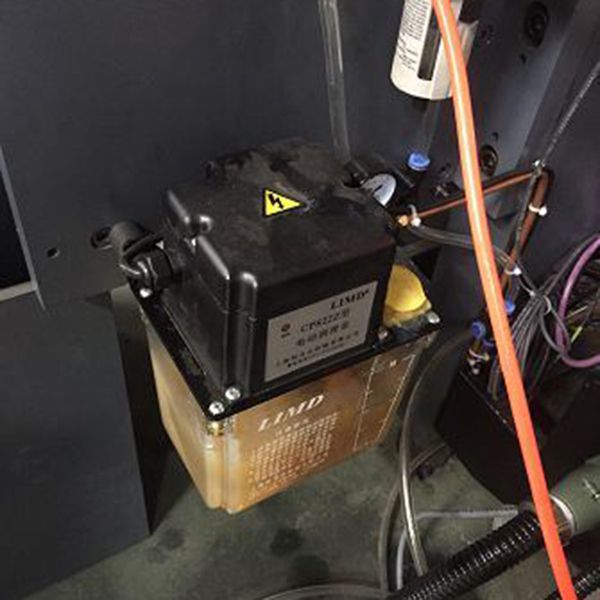

- The lubricating system is an automatic centralized refueling system.
- The mobile touch console can move between units, so the working efficiency is improved.
- Automatic Ink Roller Cleaning System
- Remote Ink Fountain Control System
- Cold Foil Stamping System
- Round Screen Printing Color
- CCD Camera
- Digital Printing Unit
- UV Flexographic Printing Unit
The flexo printing with anilox is particularly suitable for UV varnishing and for making a white area on transparent materials.
- Letterpress Printing Unit

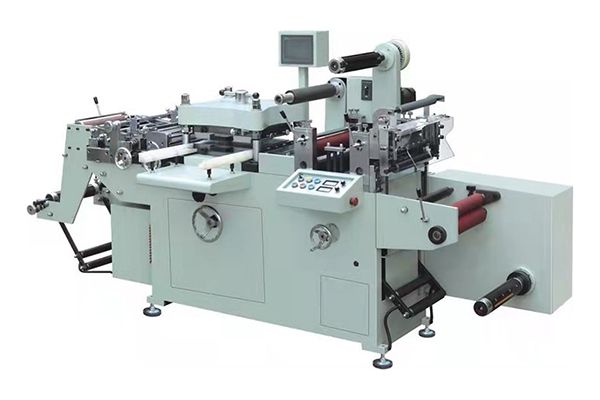

- Roller Die Cutting Device
The caring blade is attached on the magnetic drum and any graphic can be die cut.
- Laminating Device
In high-speed intermittent printing, an intermittent laminating device can be installed before the roller die cutting device.
