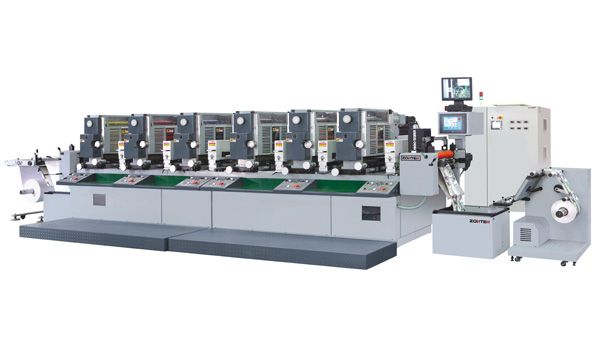

9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320

9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320
9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-320
Inquiry

Suitable for the production of coated paper stickers, aluminum foil paper stickers, thermal paper, as well as PE, PVC and PP stickers, our Smart-320 9-color rotary intermittent letterpress printing machine is the optimal choice for manufacturers printing medium and high-grade adhesive stickers. Construction of the drum is changed, enabling the equipment to work in either intermittent or full rotary way according to customers' needs.

Specifications
Max. Width of the Material 310mm
Max. Printing Width 300mm
Printing Length Range Intermittent 50~260mm
Full rotary 55-96teeth (174.6~304.8mm)
Printing Color 2-9 colors
Thickness of the Printed Material 0.1~0.3mm
Machine Speed Intermittent 250r/min
Full rotary 75m/min
Max. Diameter of Unwinding 700mm
Max. Diameter of Winding 700mm
Host Power 17.3KW (Not Including UV system)
Host Power Supply 380V/AC. Three-phase 50/60Hz 50A
Overall Dimensions 6800×1600×1400mm
Weight 6800kg/6 colors
Note:
1. Machine speed will change according to the change of the printing length.
2. The appearance and the production process are subject to change without notice.

Our product adopts reciprocating paper feeding way, so printing can be finished by only one plate cylinder, regardless of the layout size. The servo control system can precisely control the servo motor that drives each printing unit, thus realizing optimal control of the printing machine. Ink supply changes proportionally with machine speed and moderate ink supply yields better printing effect. Machinery faults will be displayed on the computer screen, so users can see the fault position directly, which speeds up repairing. Equipped with cutting and other devices, this equipment can complete unwinding, printing, varnishing, die cutting, waste discharging, winding and other processes.

The machine body, gear, roller, and many other components of this Smart-320 intermittent rotary letter presses are meticulously designed and produced. High-quality cast iron is adopted as the raw material to make the body. After sand-casting, tempering, chroming and other processes, the body is durable. After quenching and fine processing, the gear has a high degree of precision, so it can guarantee accurate conjunction. Made of high-quality rubber imported from Japan, the roller has excellent rebound resilience. Configuration and operating speed of the ink roller have been strictly designed, thus preventing ghosting and ensuring excellent printing effect. Suction roll and ceramic spraying roll are used as the front and rear driving roll respectively, which improves the utilization of the printing materials. Equipped with a unique printing unit, this equipment also supports full rotary printing and the printing speed is increased. Nine printing colors can be realized and the resolution is 175LPI or more.

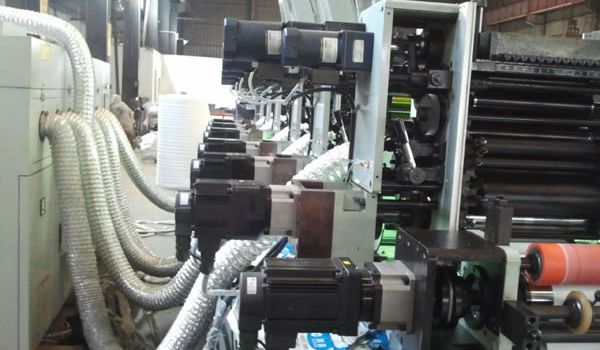

  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3201 .Servo drive system
  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3202 .Independent motor inking system

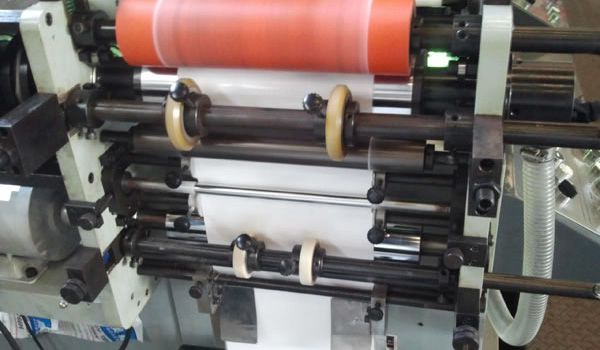

  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3203 .Vacuum suction and paper feeding system
  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3204 .Central control system
  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3205 .Transverse and longitudinal overprint system
  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3206 .Second pass system
  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3207. Swap function of intermittent and full rotary
  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3208. Unique structure of dual-use printing units
  • 9-Color Rotary Intermittent Letterpress Printing Machine, Smart-3209 .Excellent ink transfer system

  • Hob-die-cutting Device (Magnetic Drum)
  • Hob-die-cutting Device (Magnetic Drum)
  • UV Drying Device(Width of the light box is less than 140mm)
  • UV Drying Device(Width of the light box is less than 140mm)
  • UV Varnishing Device
  • UV Varnishing Device
  • CCD Camera
  • CCD Camera

As a China-based 9-color rotary intermittent letterpress printing machine manufacturer, our company also provides stacked Flexographic printing machine, resin printing plate exposure machine, PS plate intermittent offset label printing machine, label inspection machine, and much more.
